HB-DRS FR

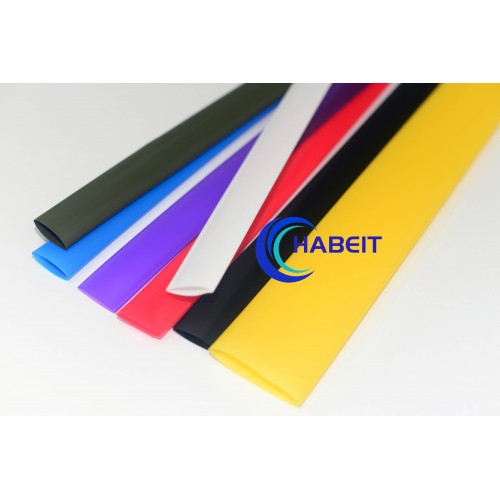

Environmentally friendly thin wall heat shrink tubing. Suitable for applications where insulation and color coding are required. Manufactured with a shrinkage ratio of 2: 1. Shrinks easily when heated. Has excellent flexibility. Does not wrinkle during transportation and operation. RoHS compliant. It is produced both in flammable form and fire-resistant.
Operating temperature: -40 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Flame suppression conforms to UL224 VW-1 standards
Packing: spool and slice
| Test Item | Test Method | Typical Value |
|---|---|---|
| Tensile strength | ASTM D2671 | ≥10.4MPa |
| Breakdown elongation | ASTM D2671 | ≥350% |
| Longitudinal shrink ratio | ASTM D2671 | ≤±5% |
| Flame retardant | UL224 | VW-1 |
| Heat shock at 200℃ for 4hrs | ASTM D2671 | No drop/No flow |
| Dielectric strength | ASTM D2671 | ≥15KV/MM |
| Water absorption at 23℃ for 336hrs | ASTM D570 | ≤0.5% |
| Low temperature flexibility at -40℃ for 4hrs | ASTM D2671 | No cracking |
| Before Shrink | After Shrink | Standard | |||
|---|---|---|---|---|---|
| Package | |||||
| I.D.(mm)≥ | Wall | I.D.(mm)≤ | Wall | (m/roll) | |
| Thickness(mm) | Thickness(mm) | ||||
| DRS(HB)-2-0.6/0.4 | 0,6 | 0,14 | 0,4 | 0,2 | 200 |
| DRS(HB)-2-0.8/0.5 | 0,8 | 0,14 | 0,5 | 0,2 | 200 |
| DRS(HB)-2-1.0/0.5 | 1 | 0,15 | 0,5 | 0,25 | 200 |
| DRS(HB)-2-1.5/0.75 | 1,5 | 0,18 | 0,75 | 0,3 | 200 |
| DRS(HB)-2-2.0/1.0 | 2 | 0,17 | 1 | 0,3 | 200 |
| DRS(HB)-2-2.5/1.25 | 2,5 | 0,17 | 1,25 | 0,3 | 200 |
| DRS(HB)-2-3.0/1.5 | 3 | 0,23 | 1,5 | 0,4 | 200 |
| DRS(HB)-2-3.5/1.75 | 4,5 | 0,22 | 1,75 | 0,4 | 200 |
| DRS(HB)-2-4.0/2.0 | 4 | 0,22 | 2 | 0,4 | 200 |
| DRS(HB)-2-4.5/2.25 | 4,5 | 0,22 | 2,25 | 0,4 | 100 |
| DRS(HB)-2-5.0/2.5 | 5 | 0,22 | 2,5 | 0,4 | 100 |
| DRS(HB)-2-6.0/3.0 | 6 | 0,22 | 3 | 0,4 | 100 |
| DRS(HB)-2-7.0/3.5 | 7 | 0,21 | 3,5 | 0,4 | 100 |
| DRS(HB)-2-8.0/4.0 | 8 | 0,21 | 4 | 0,4 | 100 |
| DRS(HB)-2-9.0/4.5 | 9 | 0,21 | 4,5 | 0,4 | 100 |
| DRS(HB)-2-10.0/5.0 | 10 | 0,21 | 5 | 0,4 | 100 |
| DRS(HB)-2-11/5.5 | 11 | 0,26 | 5,5 | 0,5 | 100 |
| DRS(HB)-2-12/6 | 12 | 0,26 | 6 | 0,5 | 100 |
| DRS(HB)-2-13/6.5 | 13 | 0,26 | 6,5 | 0,5 | 100 |
| DRS(HB)-2-14/7 | 14 | 0,26 | 7 | 0,5 | 100 |
| DRS(HB)-2-15/7.5 | 15 | 0,29 | 7,5 | 0,55 | 100 |
