HB-RSFR-H(3X)

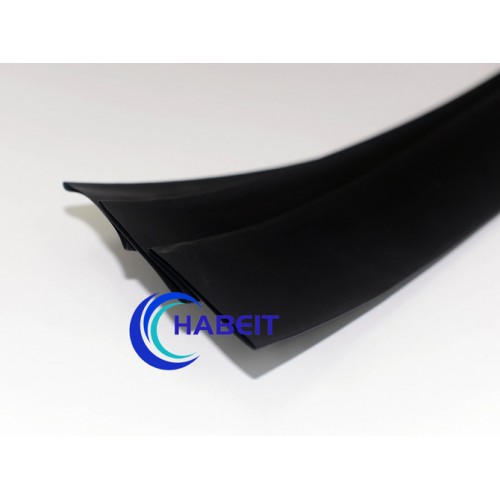

Ultra-thin flame-retardant heat shrink tubing HB-RSFR-H (3X) with a shrink ratio of 3.
Operating temperature: -55 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Packing: spool and slice
| Property | Test Method | Typical Performance |
| Tensile strength（MPa） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation（%） | ASTM D 2671 | ≥200 |
| Tensile strength after heat aged（MPa） | 158℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（%） | 158℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5%～+5% |
| Flammability | ASTM D 2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Dielectric strength（kV/mm） | ASTM D 149 | ≥15 |
| Volume resistivity（Ω·cm） | ASTM D 876 | ≥1014 |
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | |||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool | |
| HB-RSFR-H(3X) 1,5/0,75 | 1/16 | 1,5 | 1,6±0,1 | ≤0,50 | 0,45±0,10 | 200 |
| HB-RSFR-H(3X) 3/1,5 | 1/8 | 3 | 3,2 ±0,1 | ≤1,00 | 0,55±0,10 | 200 |
| HB-RSFR-H(3X) 4,5/2,25 | 3/16 | 4,5 | 4,7 ±0,1 | ≤1,50 | 0,60±0,10 | 100 |
| HB-RSFR-H(3X) 6/3 | 1/4 | 6 | 6,2 ±0,1 | ≤2,00 | 0,65±0,10 | 100 |
| HB-RSFR-H(3X) 9/4,5 | 3/8 | 9 | 9,3 ± 0,2 | ≤3,00 | 0,75±0,15 | 50 |
| HB-RSFR-H(3X) 12/6 | 1/2 | 12 | 12,3 ±0, 2 | ≤4,00 | 0,75±0,15 | 50 |
| HB-RSFR-H(3X) 15/7,5 | 5/8 | 15 | 15,3 ±0, 2 | ≤5,00 | 0,80±0,15 | 50 |
| HB-RSFR-H(3X) 18/9 | 3/163/4 | 18 | 1 8,3 ±0, 2 | ≤6,00 | 0,85±0,15 | 50 |
| HB-RSFR-H(3X) 24/12 | 1 | 24 | 24,4 ±0, 3 | ≤8,00 | 1,00±0,20 | 25 |
| HB-RSFR-H(3X) 30/15 | 1-1/4 | 30 | 30,4 ±0, 3 | ≤10,0 | 1,15±0,20 | 25 |
| HB-RSFR-H(3X) 39/19,5 | 1-1/2 | 39 | 39,6 ±0, 5 | ≤13,0 | 1,50±0,20 | 25 |
| HB-RSFR-H(3X) 50/25 | 2 | 50 | 50,6 ±0, 5 | ≤16,0 | 2,50±0,20 | 25 |
| HB-RSFR-H(3X) 60/30 | | 60 | 61,5 ± 1,0 | ≤20,0 | 2,60±0,20 | 25 |
| HB-RSFR-H(3X) 70/35 | | 70 | 71,5 ± 1,0 | ≤23,0 | 2,60±0,20 | 25 |
| HB-RSFR-H(3X) 80/40 | 3 | 80 | 81,5 ± 1,0 | ≤26,0 | 2,60±0,20 | 25 |
| HB-RSFR-H(3X) 90/45 | | 90 | 91,5 ± 1,0 | ≤30,0 | 2,60±0,20 | 25 |
| HB-RSFR-H(3X) 100/50 | 4 | 100 | 101,5 ±1 ,0 | ≤33,0 | 2,60±0,20 | 25 |
