HB-RSFR-135G(2X)

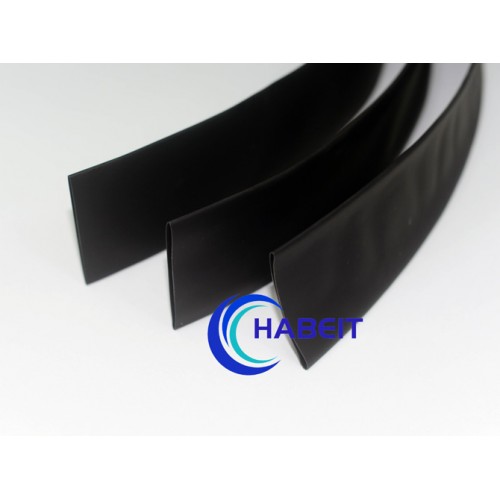

HB-RSFR-135G (2X) Thin Wall Suppression Heat Shrink Tube. Suitable for a wider range of higher temperature applications. Shrinkage factor - 2.
Operating temperature: -55 ℃ to 135 ℃
Shrinkage temperature: 120 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Meets SAE-AMS-DTL-23053/5 standard
Packing: spool and slice
| Property | Test Method | Typical Performance |
| Tensile strength （ MPa ） | ASTM D 2671 | ≥10.4 |
| Ultimate elongation （ %） | ASTM D 2671 | ≥ 2 00 |
| Tensile strength after heat aged （MPa ） | 1 75℃×168h | ≥7.3 |
| Ultimate elongation after heat aged（ %） | 1 75℃×168h | ≥100 |
| Longitudinal chang(%) | ASTM D 2671 | -5% ～ +5% |
| Flammability | ASTM D 2671C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Heat shock | UL 224 ,250℃×4h | No cracks, flowing or dripping |
| Dielectric strength （ kV/mm ） | ASTM D 149 | ≥ 15 |
| Volume resistivity （ Ω·cm ） | ASTM D 876 | ≥ 1014 |
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | |||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER MAX mm | WALL THICKNESS NOM mm | SPOOL LENGTH M/spool | |
| HB-RSFR-135G(2X) 0,8/0,4 | 3/64 | 0,8 | 1,30±0,10 | ≤0,58 | 0,41±0,07 | 305 |
| HB-RSFR-135G(2X) 1,2/0,6 | 1/16 | 1,2 | 1,70±0,10 | ≤0,79 | 0,43±0,07 | 305 |
| HB-RSFR-135G(2X) 2/1 | 3/32 | 2 | 2,50±0,10 | ≤1,17 | 0,51±0,07 | 305 |
| HB-RSFR-135G(2X) 3/1,5 | 1/8 | 3 | 3,50±0,10 | ≤1,58 | 0,51±0,07 | 305 |
| HB-RSFR-135G(2X) 4,5/2,25 | 3/16 | 4,5 | 5,00±0,10 | ≤2,36 | 0,51±0,07 | 152,5 |
| HB-RSFR-135G(2X) 6/3 | 1/4 | 6 | 6,60±0,10 | ≤3,18 | 0,64±0,07 | 152,5 |
| HB-RSFR-135G(2X) 9/4,5 | 3/8 | 9 | 9,65±0,10 | ≤4,75 | 0,64±0,07 | 76,25 |
| HB-RSFR-135G(2X) 12/6 | 1/2 | 12 | 13,00±0,20 | ≤6,35 | 0,64±0,07 | 76,25 |
| HB-RSFR-135G(2X) 18/9 | 3/4 | 18 | 19,50±0,30 | ≤9,53 | 0,76±0,07 | 76,25 |
| HB-RSFR-135G(2X) 25/12,5 | 1 | 25 | 26,00±0,30 | ≤12,7 | 0,89±0,07 | 100 |
| HB-RSFR-135G(2X) 30/15 | 5/4 | 30 | 31,00±0,50 | ≤15,0 | 0,89±0,07 | 61 |
| HB-RSFR-135G(2X) 38/19 | 3/2 | 38 | 39,00±0,50 | ≤19,1 | 1,00±0,07 | 50 |
| HB-RSFR-135G(2X) 50/25 | 2 | 50 | 52,50±1,50 | ≤25,4 | 1,15±0,07 | 50 |
| HB-RSFR-135G(2X) 75/37,5 | 3 | 75 | 79,00±2,0 | ≤38,1 | 1,27±0,07 | 50 |
| HB-RSFR-135G(2X) 100/50 | 4 | 100 | 104,0±2,0 | ≤50,8 | 1,40±0,07 | 50 |
