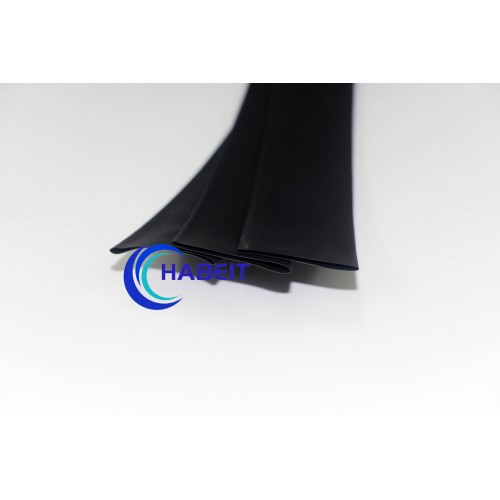

HB-RSFR-135G (3X)
Ultra-thin heat-shrinkable tubing HB-RSFR-135G (3X) with a shrink ratio of 3. Does not support combustion.
Operating temperature: -55 ℃ to 135 ℃
Shrinkage temperature: 120 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Meets SAE-AMS-DTL-23053/5 standard
Packing: spool and slice
| Test Method | Typical Performance |
|---|---|
| ASTM D 2671 | ≥10.4 |
| ASTM D 2671 | ≥ 2 00 |
| 1 75 ℃×168h | ≥7.3MPa |
| 1 75 ℃×168h | ≥100 |
| ASTM D 2671 | -5% ～ +5% |
| ASTM D 2671 C method | VW-1 |
| UL 224, 2500V, 60s | No breakdown |
| UL 224 , 250℃×4h | No cracks, flowing or dripping |
| ASTM D 149 | ≥ 15 |
| ASTM D 876 | ≥ 1014 |
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
|---|---|---|---|---|---|
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER MAX mm | WALL THICKNESS NOM mm | SPOOL LENGTH M/spool |
| 1/16 | 1,5 | 1,5 | ≤0,5 | 0,45±0,10 | 200 |
| 1/8 | 3 | 3 | ≤1,0 | 0,55±0,10 | 200 |
| 3/16 | 4,5 | 4,5 | ≤1,5 | 0,60±0,10 | 100 |
| 1/4 | 6 | 6 | ≤2,0 | 0,65±0,10 | 100 |
| 3/8 | 9 | 9 | ≤3,0 | 0,75±0,15 | 50 |
| 1/2 | 12 | 12 | ≤4,0 | 0,75±0,15 | 50 |
| 5/8 | 15 | 15 | ≤5,0 | 0,80±0,15 | 50 |
| 3/4 | 18 | 18 | ≤6,0 | 0,85±0,15 | 50 |
| 1 | 24 | 24 | ≤8,0 | 1,00±0,20 | 25 |
| 1-1/4 | 30 | 30 | ≤10,0 | 1,15±0,20 | 25 |
| 1-1/2 | 39 | 39 | ≤13,0 | 1,50±0,20 | 25 |
| 2 | 50 | 50 | ≤16,0 | 2,50±0,20 | 25 |
| | 60 | 60 | ≤20,0 | 2,60±0,20 | 25 |
| | 70 | 70 | ≤23,0 | 2,60±0,20 | 25 |
| 3 | 80 | 80 | ≤26,0 | 2,60±0,20 | 25 |
| | 90 | 90 | ≤30,0 | 2,60±0,20 | 25 |
| 4 | 100 | 100 | ≤33,0 | 2,60±0,20 | 25 |
