YGDRS(HB)-2

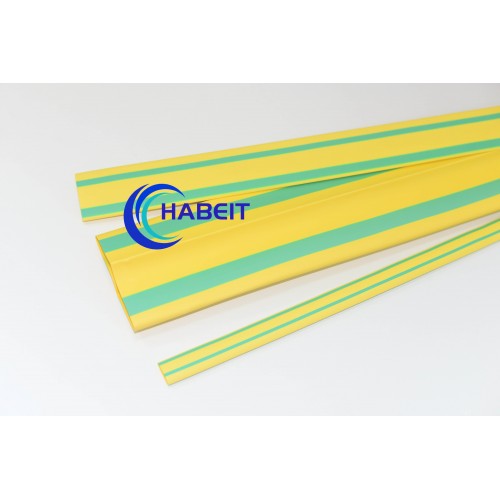

The green-yellow tube is used to insulate the grounding conductors as well as mark the earthed sections of cable lines. Shrinks easily when heated. Has excellent flexibility. Does not wrinkle during transportation and operation. RoHS compliant. It is produced both in flammable form and fire-resistant.
Operating temperature: -40 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Flame suppression conforms to UL224 VW-1 standards
Packing: spool and slice
| Test Item | Test Method | Typical Value |
|---|---|---|
| Tensile strength | ASTM D2671 | ≥12MPa |
| Breakdown elongation | ASTM D2671 | ≥450% |
| Longitudinal shrink ratio | ASTM D2671 | ≤±5% |
| Flame retardant | UL224 | VW-1 |
| Heat shock at 200℃ for 4hrs | ASTM D2671 | No drop/No flow |
| Dielectric strength | ASTM D2671 | ≥15KV/MM |
| Water absorption at 23℃ for 336hrs | ASTM D570 | ≤0.5% |
| Low temperature flexibility at -40℃ for 4hrs | ASTM D2671 | No cracking |
| Before Shrink | After Shrink | Standard | |||
|---|---|---|---|---|---|
| Package | |||||
| Product | I,D,(mm)≥ | Wall | I,D,(mm)≤ | Wall | (m/roll) |
| Code | Thickness(mm) | Thickness(mm) | |||
| YGDRS(HB)-2-1,0/0,5 | 1 | 0,18 | 0,5 | 0,36 | 200 |
| YGDRS(HB)-2-1,5/0,75 | 1,5 | 0,19 | 0,75 | 0,38 | 200 |
| YGDRS(HB)-2-2,0/1,0 | 2 | 0,19 | 1 | 0,38 | 200 |
| YGDRS(HB)-2-2,5/1,25 | 2,5 | 0,2 | 1,25 | 0,4 | 200 |
| YGDRS(HB)-2-3,0/1,5 | 3 | 0,2 | 1,5 | 0,4 | 200 |
| YGDRS(HB)-2-4,0/2,0 | 4 | 0,2 | 2 | 0,4 | 200 |
| YGDRS(HB)-2-5,0/2,5 | 5 | 0,21 | 2,5 | 0,42 | 100 |
| YGDRS(HB)-2-6,0/3,0 | 6 | 0,21 | 3 | 0,42 | 100 |
| YGDRS(HB)-2-7,0/3,5 | 7 | 0,21 | 3,5 | 0,42 | 100 |
| YGDRS(HB)-2-8,0/4,0 | 8 | 0,21 | 4 | 0,42 | 100 |
| YGDRS(HB)-2-10,0/5,0 | 10 | 0,25 | 5 | 0,5 | 100 |
| YGDRS(HB)-2-12,0/6,0 | 12 | 0,25 | 6 | 0,5 | 100 |
| YGDRS(HB)-2-14/7 | 14 | 0,25 | 7 | 0,5 | 100 |
| YGDRS(HB)-2-16/8 | 16 | 0,29 | 8 | 0,58 | 100 |
| YGDRS(HB)-2-18/9 | 18 | 0,3 | 9 | 0,6 | 50 |
| YGDRS(HB)-2-20/10 | 20 | 0,3 | 10 | 0,6 | 50 |
| YGDRS(HB)-2-25/12,5 | 25 | 0,35 | 12,5 | 0,7 | 25 |
| YGDRS(HB)-2-28/14 | 28 | 0,37 | 14 | 0,75 | 25 |
| YGDRS(HB)-2-30/15 | 30 | 0,39 | 15 | 0,78 | 25 |
| YGDRS(HB)-2-35/17,5 | 35 | 0,39 | 17,5 | 0,78 | 25 |
| YGDRS(HB)-2-40/20 | 40 | 0,39 | 20 | 0,78 | 25 |
| YGDRS(HB)-2-50/25 | 50 | 0,4 | 25 | 0,8 | 25 |
| YGDRS(HB)-2-60/30 | 60 | 0,43 | 30 | 0,86 | 25 |
