HB-HWG

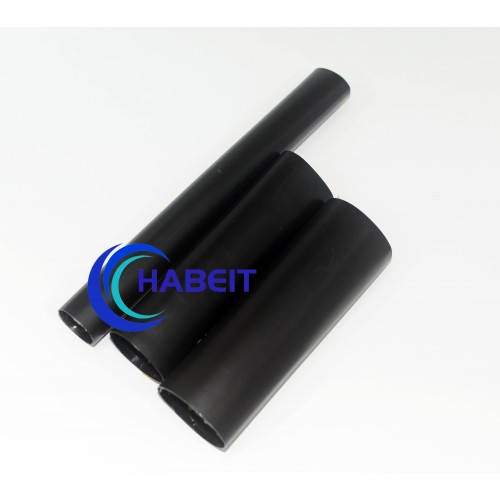

The thick wall adhesive heat shrink tubing is a soft heat shrink tubing with a polyolefin outer layer and an ethylene vinyl acetate adhesive layer. Provides excellent moisture insulation. It is used both for electrical insulation with a voltage of 10-35 kV, and in the form of mechanical protection of cable products. It is produced both with suppression of combustion according to the SAE-AMS-DTL-23053/4 standard, and without suppression of combustion.
Operating temperature: -45 ℃ to 120 ℃
Shrinkage temperature: from 125 ℃
Colors: black, red, blue, green, yellow, transparent or any other on request.
Combustion suppression complies with SAE-AMS-DTL-23053/4
| Test Item | Test Method | Typical Value | |
|---|---|---|---|
| Tensile strength | ASTM D2671 | ≥11MPa | |
| Breakdown elongation | ASTM D2671 | ≥380% | |
| After aging | Tensile strength | ASTM D2671 | ≥11MPa |
| Breakdown elongation | ≥350% | ||
| Flammability | ASTM D2863 | ≥28 | |
| Heat shock at 200℃ for 4hrs | ASTM D2671 | No drop/No flow | |
| Dielectric strength | ASTM D2671 | ≥15KV/MM | |
| Water absorption at 23℃ for 336hrs | ASTM D570 | ≤0.5% | |
| Low temperature flexibility at -40℃ for 4hrs | ASTM D2671 | No cracking | |
| Peel off strength to PEX | ASTM D2671 | ≥30N/cm | |
| Peel off strength to steel | ASTM D2671 | ≥30N/cm | |
| Product | Before Shrink | After Shrink | Standard | ||
|---|---|---|---|---|---|
| Code | Package | ||||
| I.D.(mm)≥ | Wall | I.D.(mm)≤ | Wall | (m/roll) | |
| Thickness(mm) | Thickness(mm) | ||||
| HWPC(HB)-9/3 | 9 | 0,98 | 3 | 2,5 | 1;1,22M |
| HWPC(HB)-12/4 | 12 | 1,15 | 4 | 2,5 | 1;1,22M |
| HWPC(HB)-16/5 | 16 | 1,04 | 5 | 2,5 | 1;1,22M |
| HWPC(HB)-19/6 | 19 | 1,27 | 6 | 3 | 1;1,22M |
| HWPC(HB)-22/6 | 22 | 1,12 | 6 | 3 | 1;1,22M |
| HWPC(HB)-25/8 | 25 | 1,21 | 8 | 3 | 1;1,22M |
| HWPC(HB)-28/6 | 28 | 0,9 | 6 | 3 | 1;1,22M |
| HWPC(HB)-33/8 | 33 | 0,94 | 8 | 3 | 1;1,22M |
| HWPC(HB)-35/12 | 35 | 1,21 | 12 | 3 | 1;1,22M |
| HWPC(HB)-40/12 | 40 | 1,28 | 12 | 3,5 | 1;1,22M |
| HWPC(HB)-45/13 | 45 | 1,22 | 13 | 3,5 | 1;1,22M |
| HWPC(HB)-55/16 | 55 | 1,27 | 16 | 3,7 | 1;1,22M |
| HWPC(HB)-65/19 | 65 | 1,25 | 19 | 3,7 | 1;1,22M |
| HWPC(HB)-75/22 | 75 | 1,23 | 22 | 3,7 | 1;1,22M |
| HWPC(HB)-85/25 | 85 | 1,22 | 25 | 3,7 | 1;1,22M |
| HWPC(HB)-95/25 | 95 | 1,19 | 25 | 4 | 1;1,22M |
| HWPC(HB)-100/30 | 100 | 1,28 | 30 | 4 | 1;1,22M |
| HWPC(HB)-115/34 | 115 | 1,23 | 34 | 3,8 | 1;1,22M |
| HWPC(HB)-130/36 | 130 | 1,21 | 36 | 4 | 1;1,22M |
| HWPC(HB)-140/42 | 140 | 1,29 | 42 | 4 | 1;1,22M |
| HWPC(HB)-160/50 | 160 | 1,22 | 50 | 3,7 | 1;1,22M |
| HWPC(HB)-175/58 | 175 | 1,21 | 58 | 3,5 | 1;1,22M |
| HWPC(HB)-200/62 | 200 | 1,27 | 62 | 4 | 1;1,22M |
| HWPC(HB)-230/68 | 230 | 1,24 | 68 | 4 | 1;1,22M |
| HWPC(HB)-260/68 | 260 | 1,24 | 68 | 4,5 | 1;1,22M |
| HWPC(HB)-300/70 | 300 | 1,22 | 70 | 5 | 1;1,22M |
| HWPC(HB)-350/70 | 350 | 1,23 | 70 | 5,5 | 1;1,22M |
