HB-SBRS-(4X)GBK

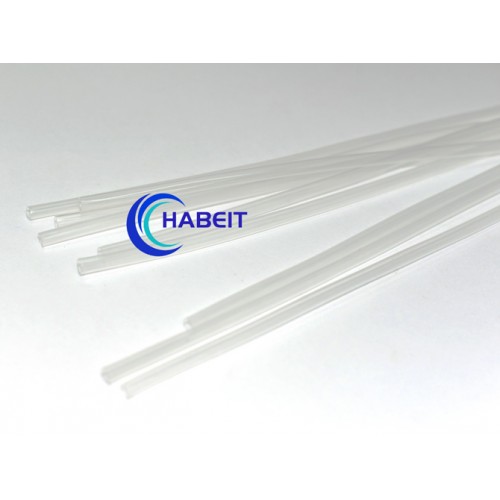

Heat shrink tubing with adhesive and shrink ratio 4 HB-SBRS- (4X) GBK is used for insulating cable harnesses. Allows you to control the quality of the wiring under the tube.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 110 ℃
Colors: transparent, black
Shrinkage ratio: 4
Packing: spool and slice
| Technical Data | |||
| Property | Test method | Standard Performance | Typical Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11,5 |
| Elongation(%) | ASTM D 2671 | ≥200 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168hr | ≥100 | 350 |
| Flammability | ASTM D 2671 B | Self-extinguish within 30s | Self-extinguish within 30s |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
| Adhesive | ||
| Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜0.2% |
| Softening Point(℃) | ASTM E8 | 95 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | ||||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | ||
| HB-SBRS-(4X)GBK 4 | 5/32 | 4 | 4 | 0,95 | 1,40±0,30 | 0,50±0,20 | 200 |
| HB-SBRS-(4X)GBK 6 | 1/4 | 6 | 6 | 1,27 | 1,70±0,30 | 0,60±0,20 | 100 |
| HB-SBRS-(4X)GBK 8 | 5/16 | 8 | 8 | 1,65 | 2,00±0,30 | 0,75±0,20 | 100 |
| HB-SBRS-(4X)GBK 10 | 2/5 | 10 | 10 | 2 | 2,20±0,40 | 0,90±0,20 | 1,22m OR 25M/Roll |
| HB-SBRS-(4X)GBK 12 | 1/2 | 12 | 12 | 2,41 | 2,45±0,40 | 1,20±0,20 | 1,22m OR 25M/Roll |
| HB-SBRS-(4X)GBK 18 | 3/4 | 18 | 18 | 4,45 | 2,60±0,40 | 1,40±0,20 | 1,22m OR 25M/Roll |
