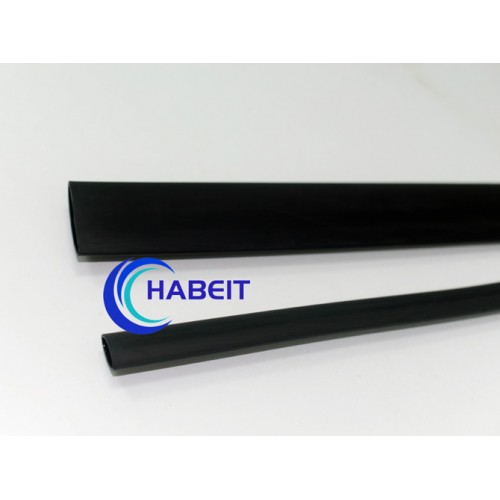

HB-SBRSM
Glue-coated, mid-wall, fire-resistant heat shrink tubing.
Seals and protects cable splices and terminations.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Technical Data | |||
| Property | Test method | Standard | Typical Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥10,4 | 11,5 |
| Elongation(%) | ASTM D 2671 | ≥300 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168h | ≥7,3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168h | ≥200 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω,cm) | IEC 60093 | ≥1*1014 | 2,5*1014 |
| Adhesive | ||
| Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜0,2% |
| Softening Point(℃) | ASTM E 28 | 95 |
| Strength of pearing (PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTM D 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package M/pc | ||||
| mm | Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||
| HB-SBRSM-10,2/3,0 | 10,2/3,0 | 10,2 | 3 | 1,40±0,20 | 0,35±0,15 | 1,85±0,25 | 1,22 |
| HB-SBRSM-16,0/5,0 | 16,0/5,0 | 16 | 5 | 1,50±0,20 | 0,40±0,15 | 2,00±0,25 | 1,22 |
| HB-SBRSM-19,1/5,6 | 19,1/5,6 | 19,1 | 5,6 | 2,00±0,20 | 0,45±0,20 | 2,40±0,25 | 1,22 |
| HB-SBRSM- 25/8 | 25/8 | 25 | 8 | 2,00±0,25 | 0,45±0,20 | 2,70±0,25 | 1,22 |
| HB-SBRSM- 28/9 | 28/9 | 28 | 9 | 2,00±0,25 | 0,50±0,20 | 2,80±0,25 | 1,22 |
| HB-SBRSM-35/10,2 | 35/10,2 | 35 | 10,2 | 2,20±0,25 | 0,78±0,20 | 2,80±0,25 | 1,22 |
| HB-SBRSM-38,1/12 | 38,1/12 | 38,1 | 12 | 2,20±0,25 | 0,50±0,20 | 2,80±0,25 | 1,22 |
| HB-SBRSM-43,2/12,7 | 43,2/12,7 | 43,2 | 12,7 | 2,20±0,25 | 0,50±0,20 | 2,90±0,25 | 1,22 |
| HB-SBRSM-52,1/16 | 52,1/16 | 52,1 | 16 | 2,30±0,25 | 0,50±0,20 | 2,90±0,25 | 1,22 |
| HB-SBRSM-63/19 | 63/19 | 63 | 19 | 2,50±0,35 | 0,50±0,20 | 3,00±0,25 | 1,22 |
| HB-SBRSM-75/22 | 75/22 | 75 | 22 | 2,60±0,35 | 0,50±0,20 | 3,70±0,25 | 1,22 |
| HB-SBRSM-85/25 | 85/25 | 85 | 25 | 2,80±0,35 | 0,50±0,20 | 3,70±0,30 | 1,22 |
| HB-SBRSM-95/29 | 95/29 | 95 | 29 | 3,10±0,45 | 0,60±0,20 | 3,90±0,30 | 1,22 |
| HB-SBRSM-115/34 | 115/34 | 115 | 34 | 3,10±0,45 | 0,60±0,20 | 3,90±0,30 | 1,22 |
| HB-SBRSM-140/42 | 140/42 | 140 | 42 | 3,10±0,45 | 0,60±0,20 | 4,10±0,30 | 1,22 |
| HB-SBRSM-160/48 | 160/48 | 160 | 48 | 3,10±0,45 | 0,60±0,20 | 4,10±0,30 | 1,22 |
| HB-SBRSM-180/58 | 180/58 | 180 | 58 | 3,10±0,45 | 0,60±0,20 | 4,10±0,30 | 1 |
| HB-SBRSM-200/60 | 200/60 | ≥200,0 | ≤60,0 | 3,10±0,45 | 0,60±0,20 | 4,10±0,30 | 1 |
| HB-SBRSM-230/69 | 230/69 | ≥230,0 | ≤69,0 | 3,10±0,45 | 0,60±0,20 | 4,10±0,30 | 1 |
