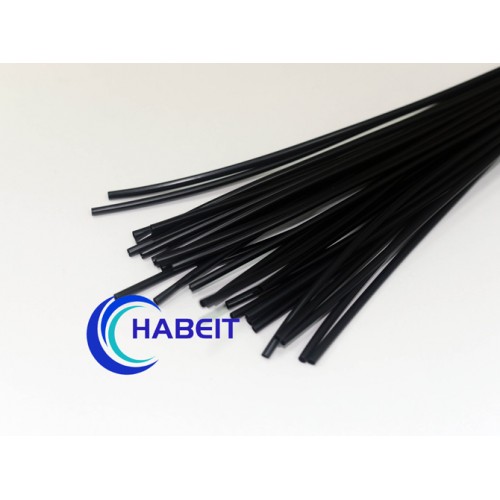

HB-SBRS-(2X)QF
Adhesive heat shrinkable tubing HB-SBRS- (2X) QF is specially designed for the automotive industry. Used to protect fuel hoses, hydraulic lines, pneumatic systems and other metal pipes, including bent pipes.
Operating temperature: -45 ℃ to 105 ℃
Shrinkage temperature: 125 ℃
Colors: black
Packing: spool and slice
| Property | Test method | Standard Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥12 |
| Elongation(%) | ASTM D 2671 | ≥300 |
| Longitudinal change | ASTM D 2671 | -10%~+10% |
| Tensile strength after aging(MPa) | 120℃*24h | ≥12 |
| Non-deformability | 140℃,10min,2kg/cm2 ,loaded 5min | ≤60% |
| Low-temperature impact | ASTM D 746 | -35℃,no cracking |
| Impact resistance to fall |
Room temperature&-40℃*30min, |
no cracking |
| Stress-crack resistance | ASTM D 1693 | no cracking |
|
Chemical reagents resistance: |
No abnormal in appearance | 20℃,120hr |
| Adhesive | ||
| Property | Test method | Standard |
| Water Absorption | ASTM D 570 | ＜0.5% |
| Softening Point(℃) | ASTM E 28 | 105±3℃, |
| Strength of pearing (Al) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (PE) | ASTMD 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | |||
| mm | Internal Diameter(mm) | Internal Diameter(mm) | Total Wall Thickness (mm) | Adhesive Thickness(mm) | Spool Length M/spool | |
| HB-SBRS-(2X)QF 4,5 | 4,5 | 5 | 3,2 | 1,20±0,20 | 0,20±0,10 | 300 |
| HB-SBRS-(2X)QF 6 | 6 | 6 | 4,5 | 1,20±0,20 | 0,20±0,10 | 300 |
| HB-SBRS-(2X)QF 8 | 8 | 8 | 6,1 | 1,30±0,20 | 0,20±0,10 | 200 |
| HB-SBRS-(2X)QF 11 | 11 | 11 | 7,1 | 1,30±0,20 | 0,20±0,10 | 200 |
| HB-SBRS-(2X)QF 13 | 13 | 13 | 9,8 | 1,30±0,20 | 0,20±0,10 | 100 |
| HB-SBRS-(2X)QF 15 | 15 | 15 | 11,5 | 1,30±0,20 | 0,20±0,10 | 100 |
