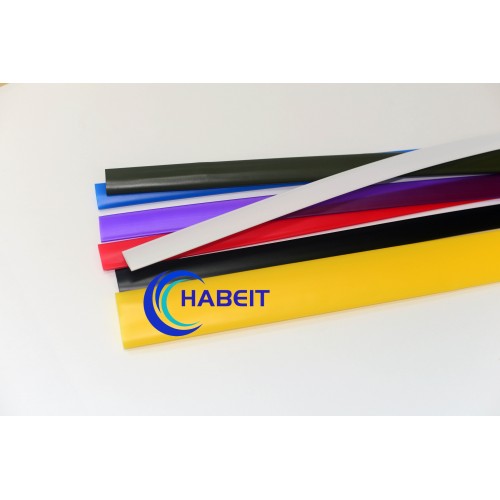

HB-SBRS- (3X)
HB-SBRS- (3X) G double layer flame retardant heat shrink tubing is used in most cases where it is necessary to isolate the connection or line from moisture. Does not spread combustion.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black, yellow, red, white, green, blue
Shrinkage ratio: 3
Packing: spool and slice
| Test method | Standard Performance |
|---|---|
| ASTM D 2671 | ≥ 10.4 |
| ASTM D 2671 | ≥ 300 |
| UL224 158 ℃*168hr | ≥ 7.3 |
| UL224 158 ℃*168hr | ≥ 200 |
| ASTM D 2671 B | Self-extinguish within 30s |
| IEC 60243 | ≥ 15 |
| IEC 60093 | ≥ 1*1014 |
| Test method | Standard Performance |
| ASTM D 570 | ＜ 0.2 |
| ASTM E 28 | 95 |
| ASTM D 1000 | 120N/25mm |
| ASTM D 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | |||
|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool |
| 3/32 | 2,4 | 2,4 | 0,8 | 0,80±0,30 | 0,40±0,20 | 200 |
| 1/8 | 3,2 | 3,2 | 1 | 0,90±0,30 | 0,40±0,20 | 200 |
| 3/16 | 4,8 | 4,8 | 1,6 | 1,05±0,30 | 0,40±0,20 | 100 |
| 1/4 | 6,4 | 6,4 | 2,2 | 1,25±0,30 | 0,45±0,20 | 100 |
| 5/16 | 7,9 | 7,9 | 2,7 | 1,35±0,30 | 0,50±0,20 | 100 |
| 3/8 | 9,5 | 9,5 | 3,2 | 1,45±0,30 | 0,50±0,20 | 50 |
| 1/2 | 12,7 | 12,7 | 4,2 | 1,65±0,30 | 0,50±0,20 | 1,22 OR 25M/Roll |
| 5/8 | 15 | 15 | 5,2 | 1,80±0,30 | 0,55±0,30 | 1,22 OR 25M/Roll |
| 3/4 | 19,1 | 19,1 | 6,3 | 1,95±0,30 | 0,60±0,30 | 1,22 OR 25M/Roll |
| 1 | 25,4 | 25,4 | 8,5 | 2,00±0,40 | 0,60±0,30 | 1,22 OR 25M/Roll |
| 1-1/4 | 30 | 30 | 10,2 | 2,15±0,40 | 0,65±0,30 | 1,22 OR 25M/Roll |
| 1-1/2 | 39 | 39 | 13,5 | 2,45±0,40 | 0,60±0,30 | 1,22 OR 25M/Roll |
| 2 | 50 | 50 | 17 | 2,75±0,40 | 0,75±0,30 | 1,22 OR 25M/Roll |
| 5/2 | 64 | 64 | 21 | 3,05±0,40 | 0,80±0,30 | 1,22 OR 25M/Roll |
| 3 | 75 | 75 | 25 | 3,05±0,40 | 1,05±0,40 | 1,22 OR 25M/Roll |
| 7/2 | 90 | 90 | 30 | 3,10±0,50 | 1,05±0,40 | 1,22 OR 25M/Roll |
| 4 | 100 | 100 | 34 | 3,10±0,50 | 1,05±0,40 | 1,22 OR 25M/Roll |
| 5 | 125 | 125 | 42 | 3,10±0,50 | 1,10±0,40 | 1,22 OR 25M/Roll |
