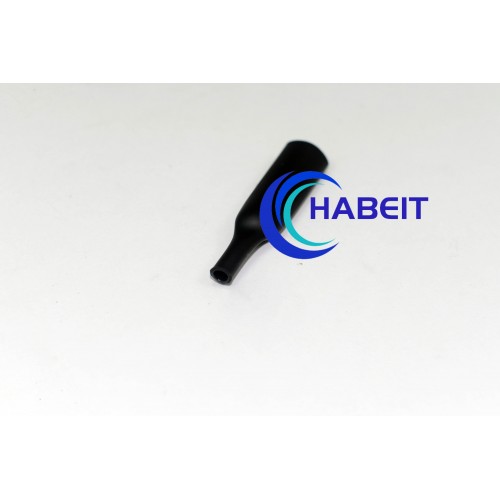

HB-SBRS-(3X)GLW
Flexible adhesive heat shrink tubing with increased wall thickness. It is used to insulate cable lines from 3 kV and above, as well as in situations where it is necessary to create reliable protection against mechanical stress. Shrinkage factor - 3.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 105 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Property | Test method | Standard Performance | Typical Performance |
|---|---|---|---|
| Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11,5 |
| Elongation(%) | ASTM D 2671 | ≥200 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168hr | ≥100 | 350 |
| Flammability | ASTM D 2671 B | Self-extinguish within 30s | Self-extinguish within 30s |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
| Property | Test method | Standard Performance |
|---|---|---|
| Water Absorption | ASTM D 570 | ＜0.2% |
| Softening Point(℃) | ASTM E8 | 95 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | ||||
|---|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool | |
| HB-SBRS-(3X)GLW 3,2 | 1/ 8 | 3,2 | 3,2 | 1 | 0,95±0,15 | 0,45±0,10 | 200 |
| HB-SBRS-(3X)GLW 4,8 | 3/16 | 4,8 | 4,8 | 1,6 | 1,20±0,15 | 0,60±0,10 | 100 |
| HB-SBRS-(3X)GLW 6,4 | 1/ 4 | 6,4 | 6,4 | 2,2 | 1,35±0,15 | 0,70±0,10 | 100 |
| HB-SBRS-(3X)GLW 7,9 | 5/16 | 7,9 | 7,9 | 2,7 | 1,50±0,15 | 0,75±0,10 | 100 |
| HB-SBRS-(3X)GLW 9,5 | 3 /8 | 9,5 | 9,5 | 3,2 | 1,50±0,15 | 0,75±0,10 | 50 |
| HB-SBRS-(3X)GLW 12,7 | 1 /2 | 12,7 | 12,7 | 4,2 | 1,80±0,20 | 0,90±0,10 | 1,22 OR 25M/Roll |
| HB-SBRS-(3X)GLW 15 | 5 /8 | 15 | 15 | 5,2 | 1,80±0,20 | 0,90±0,10 | 1,22 OR 25M/Roll |
| HB-SBRS-(3X)GLW 19,1 | 3 /4 | 19,1 | 19,1 | 6,3 | 2,00±0,20 | 1,00±0,10 | 1,22 OR 25M/Roll |
| HB-SBRS-(3X)GLW 25,4 | 1 | 25,4 | 25,4 | 8,5 | 2,10±0,20 | 1,05±0,10 | 1,22 OR 25M/Roll |
| HB-SBRS-(3X)GLW 30 | 1-1/4 | 30 | 30 | 10,2 | 2,20±0,20 | 1,05±0,10 | 1,22 OR 25M/Roll |
| HB-SBRS-(3X)GLW 38,1 | 1-1/2 | 38,1 | 38,1 | 13,5 | 2,40±0,20 | 1,15±0,10 | 1,22 OR 25M/Roll |
