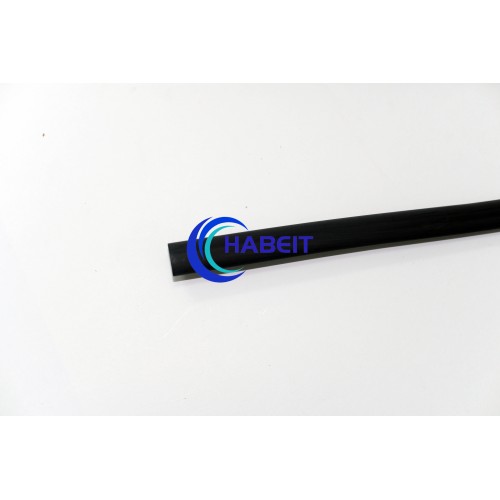

HB-SBRS-(3X) H
Halogen-free adhesive heat-shrinkable tubing HB-SBRS- (3X) H. Developed for a wide range of tasks, including the production of cable harnesses in the automotive and shipbuilding industries.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Property | Test method | Standard Performance | Typical Performance |
|---|---|---|---|
| Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11,5 |
| Elongation(%) | ASTM D 2671 | ≥200 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168hr | ≥100 | 350 |
| Flammability | ASTM D 2671 B | Self-extinguish within 30s | Self-extinguish within 30s |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
| Property | Test method | Standard Performance |
|---|---|---|
| Water Absorption | ASTM D 570 | ＜0.2% |
| Softening Point(℃) | ASTM E8 | 95 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| ID | Size | Expanded | Standard Package | After Recovery | |||
|---|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool | |
| HB-SBRS-(3X) H 2,4 | 3/32 | 2,4 | 2,4 | 0,8 | 0.85±0.15 | 0.40±0.10 | 200 |
| HB-SBRS-(3X) H 3,2 | 1/8 | 3,2 | 3,2 | 1 | 0.95±0.15 | 0.40±0.10 | 200 |
| HB-SBRS-(3X) H 4,8 | 3/16 | 4,8 | 4,8 | 1,6 | 1.10±0.15 | 0.40±0.10 | 100 |
| HB-SBRS-(3X) H 6,4 | 1/4 | 6,4 | 6,4 | 2,2 | 1.20±0.15 | 0.45±0.12 | 100 |
| HB-SBRS-(3X) H 7,9 | 5/16 | 7,9 | 7,9 | 2,7 | 1.35±0.15 | 0.50±0.12 | 100 |
| HB-SBRS-(3X) H 9,5 | 3/8 | 9,5 | 9,5 | 3,2 | 1.45±0.20 | 0.50±0.12 | 50 |
| HB-SBRS-(3X) H 12,7 | 1/2 | 12,7 | 12,7 | 4,2 | 1.70±0.20 | 0.50±0.12 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 15 | 5/8 | 15 | 15 | 5,2 | 1.80±0.20 | 0.55±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 19,1 | 3/4 | 19,1 | 19,1 | 6,3 | 2.00±0.20 | 0.55±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 25,4 | 1 | 25,4 | 25,4 | 8,5 | 2.10±0.25 | 0.55±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 30 | 1-1/4 | 30 | 30 | 10,2 | 2.20±0.25 | 0.60±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 39 | 1- 1/2 | 39 | 39 | 13,5 | 2.40±0.25 | 0.60±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 50 | 2 | 50 | 50 | 17 | 2.70±0.25 | 0.70±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 64 | 5/2 | 64 | 64 | 21 | 3.00±0.30 | 0.70±0.15 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 75 | 3 | 75 | 75 | 25 | 3.00±0.30 | 1.00±0.20 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 90 | 7/2 | 90 | 90 | 30 | 3.00±0.30 | 1.00±0.20 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 100 | 4 | 100 | 100 | 34 | 3.00±0.30 | 1.00±0.20 | 1.22 OR 25M/Roll |
| HB-SBRS-(3X) H 125 | 5 | 125 | 125 | 42 | 3.00±0.30 | 1.00±0.20 | 1.22 OR 25M/Roll |
