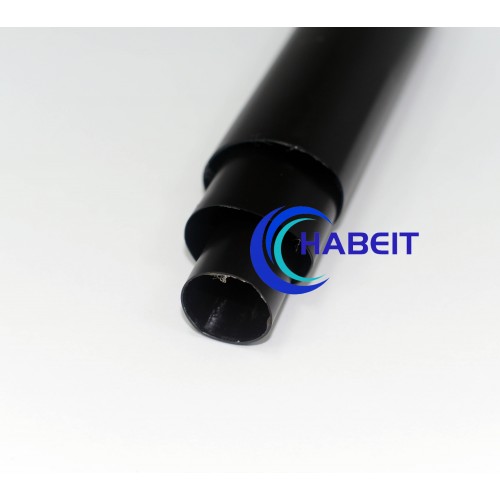

HB-SBRSW
Adhesive coated, flame retardant, flame retardant crosslinked polyolefin heat shrink tubing.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Property | Test method | Standard | Typical Performance |
|---|---|---|---|
| Tensile strength(MPa) | ASTMD 2671 | ≥10,4 | 11,5 |
| Elongation(%) | ASTMD 2671 | ≥300 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168h | ≥7,3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168h | ≥200 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω,cm) | IEC 60093 | ≥1*1014 | 2,5*1014 |
| Property | Test method | Standard Performance |
|---|---|---|
| Water Absorption | ASTM D 570 | ＜0,2% |
| Softening Point(℃) | ASTM E 28 | 95±5 |
| Strength of pearing (PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTM D 1000 | 80N/25mm |
| Size | As Supplied (mm) | After Recovery（mm） | Standard Package | ||||
|---|---|---|---|---|---|---|---|
| mm | Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | m/pcs | |
| HB-SBRSW-9 | 9/3 | 9 | 3 | 2,00±0,35 | 0,45±0,20 | 2,45±0,25 | 1,22 |
| HB-SBRSW-13 | 13/4 | 13 | 4 | 2,30±0,35 | 0,45±0,20 | 2,80±0,25 | 1,22 |
| HB-SBRSW-28 | 28/9 | 28 | 9 | 2,90±0,35 | 0,70±0,20 | 3,00±0,25 | 1,22 |
| HB-SBRSW-33 | 33/10,2 | 33 | 10,2 | 3,10±0,35 | 0,70±0,20 | 3,60±0,25 | 1,22 |
| HB-SBRSW-38,1 | 38,1/12 | 38,1 | 12 | 3,40±0,35 | 0,70±0,20 | 3,85±0,30 | 1,22 |
| HB-SBRSW-43,2 | 43,2/12 | 43,2 | 12 | 3,40±0,35 | 0,70±0,20 | 4,20±0,35 | 1,22 |
| HB-SBRSW-55 | 51/16 | 55 | 16 | 3,85±0,40 | 0,70±0,20 | 4,50±0,35 | 1,22 |
| HB-SBRSW-75 | 70/22 | 75 | 22 | 3,60±0,40 | 0,70±0,20 | 4,40±0,35 | 1,22 |
| HB-SBRSW-85 | 85/25 | 85 | 25 | 3,60±0,40 | 0,80±0,20 | 4,40±0,35 | 1,22 |
| HB-SBRSW-105 | 105/30 | 105 | 30 | 3,60±0,40 | 0,80±0,20 | 4,50±0,35 | 1,22 |
| HB-SBRSW-120 | 120/36 | 120 | 36 | 3,80±0,40 | 0,80±0,20 | 4,50±0,35 | 1,22 |
| HB-SBRSW-140 | 140/42 | 140 | 42 | 3,80±0,40 | 0,80±0,20 | 4,50±0,35 | 1,22 |
