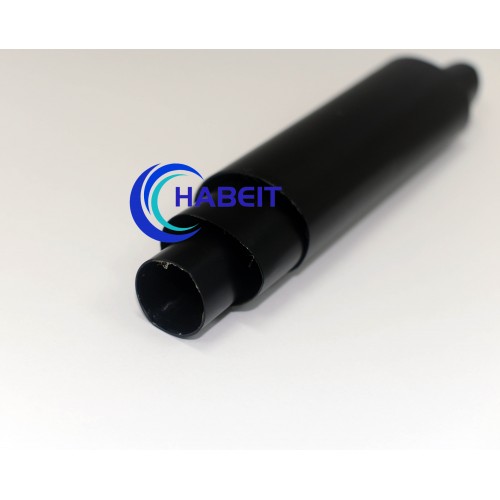

HB-SBRSM-NF
Medium Wall Crosslinked Polyolefin Heat Shrink Tubing Lined with Adhesive
Operating temperature: -45 ℃ to 110 ℃
Shrinkage temperature: 110 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Property | Test method | Standard | Typical Performance |
|---|---|---|---|
| Tensile strength(MPa) | ASTMD 2671 | ≥ 14 | 15 |
| Elongation(%) | ASTMD 2671 | ≥ 400 | 450 |
| Tensile strength after aging(MPa) | UL224 158 ℃*168h | ≥ 12 | 12,5 |
| Elongation after aging (%) | UL224 158 ℃*168h | ≥ 300 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥ 15 | 17,5 |
| Volume resistivity( Ω,cm) | IEC 60093 | ≥ 1*1014 | 2,5 *1014 |
| Property | Test method | Standard Performance |
|---|---|---|
| Water Absorption | ASTM D 570 | ＜ 0,2% |
| Softening Point( ℃) | ASTM E 28 | 95 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| Size | As Supplied (mm) | After Recovery （ mm） | Standard Package | ||||
|---|---|---|---|---|---|---|---|
| mm | Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | m/pcs | |
| HB-SBRSM-NF-6 | 6,0/2,0 | 6 | 2 | 1,40 ±0,20 | 0,45 ±0,15 | 1,85 ±0,30 | 1,22 |
| HB-SBRSM-NF-8 | 8,0/2,0 | 8 | 2 | 1,40 ±0,20 | 0,45 ±0,15 | 1,85 ±0,30 | 1,22 |
| HB-SBRSM-NF-10,2 | 10,2/3,0 | 10,2 | 3 | 1,40 ±0,20 | 0,50 ±0,15 | 1,90 ±0,30 | 1,22 |
| HB-SBRSM-NF-12 | 12,0/3,0 | 12 | 3 | 1,40 ±0,20 | 0,50 ±0,15 | 1,90 ±0,30 | 1,22 |
| HB-SBRSM-NF-16 | 16,0/5,0 | 16 | 5 | 1,50 ±0,20 | 0,55 ±0,20 | 2,15 ±0,35 | 1,22 |
| HB-SBRSM-NF-19,1 | 19,1/5,6 | 19,1 | 5,6 | 1,80 ±0,20 | 0,60 ±0,20 | 2,40 ±0,40 | 1,22 |
| HB-SBRSM-NF-22 | 22,0/6,0 | 22 | 6 | 2,00 ±0,30 | 0,60 ±0,20 | 2,60 ±0,40 | 1,22 |
| HB-SBRSM-NF-25 | 25,0/8,0 | 25 | 8 | 2,00 ±0,30 | 0,65 ±0,20 | 2,70 ±0,40 | 1,22 |
| HB-SBRSM-NF-28 | 28,0/6,0 | 28 | 6 | 2,40 ±0,30 | 0,95 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-33 | 33,0/8,0 | 33 | 8 | 2,50 ±0,30 | 0,80 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-38,1 | 38,1/12,0 | 38,1 | 12 | 2,40 ±0,30 | 0,80 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-43,2 | 43,2/12,7 | 43,2 | 12,7 | 2,40 ±0,30 | 0,80 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-55 | 55,0/16,0 | 55 | 16 | 2,40 ±0,30 | 0,80 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-65 | 65,0/19,0 | 65 | 19 | 2,50 ±0,30 | 0,80 ±0,25 | 3,30 ±0,45 | 1,22 |
| HB-SBRSM-NF-75 | 75,0/22,0 | 75 | 22 | 2,90 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1,22 |
| HB-SBRSM-NF-85 | 85,0/25,0 | 85 | 25 | 2,90 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1,22 |
| HB-SBRSM-NF-95 | 95,0/30,0 | 95 | 30 | 3,00 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1,22 |
| HB-SBRSM-NF-115 | 115,0/34,0 | 115 | 34 | 3,00 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1,22 |
| HB-SBRSM-NF-140 | 140,0/42,0 | 140 | 42 | 3,00 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1,22 |
| HB-SBRSM-NF-160 | 160,0/50,0 | 160 | 50 | 3,10 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1 |
| HB-SBRSM-NF-180 | 180,0/65,0 | 180 | 65 | 3,10 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1 |
| HB-SBRSM-NF-200 | 200,0/69,0 | 200 | 69 | 3,10 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1 |
| HB-SBRSM-NF-230 | 230,0/78,0 | 230 | 78 | 3,10 ±0,30 | 0,80 ±0,25 | 3,70 ±0,50 | 1 |
