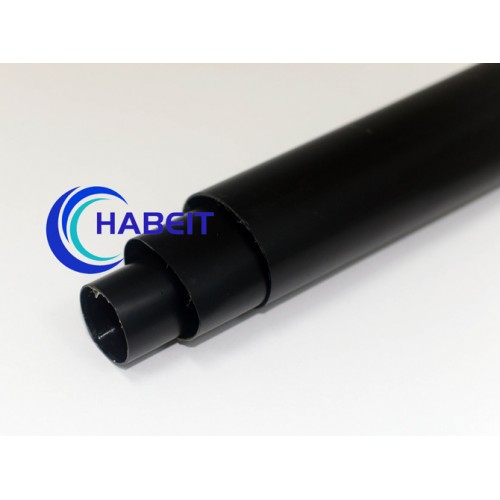

HB-SBRS-NF
Heavy-wall adhesive-coated cross-linked polyolefin heat shrink tubing.
Thick-walled, adhesive-coated heat shrink tubing provides maximum insulation and protection for cable connections and terminations. Withstands the stringent mechanical requirements of U.R.D .. Used in submerged cable lines.
High impact, abrasion, corrosion and chemical resistance.
Operating temperature: -45 ℃ to 110 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 3
| Technical Data | |||
| Property | Test method | Standard | Typical Performance |
| Tensile strength(MPa) | ASTMD 2671 | ≥14 | 15 |
| Elongation(%) | ASTMD 2671 | ≥400 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168h | ≥12 | 12,5 |
| Elongation after aging (%) | UL224 158℃*168h | ≥300 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω,cm) | IEC 60093 | ≥1*1014 | 2,5*1014 |
| Adhesive | ||
| Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜0,2% |
| Softening Point(℃) | ASTM E 28 | 95±5 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| Size | As Supplied (mm) | After Recovery（mm） | Standard Package | ||||
| mm | Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | m/pcs | |
| HB-SBRS-NF-8 | 8,0/2,0 | 8 | 2 | 1,80±0,20 | 0,45±0,10 | 2,35±0,25 | 1,22 |
| HB-SBRS-NF-9 | 9,0/3,0 | 9 | 3 | 2,00±0,20 | 0,45±0,10 | 2,55±0,25 | 1,22 |
| HB-SBRS-NF-13 | 13,0/4,0 | 13 | 4 | 2,30±0,20 | 0,50±0,10 | 2,85±0,25 | 1,22 |
| HB-SBRS-NF-16 | 16,0/5,0 | 16 | 5 | 2,30±0,20 | 0,55±0,10 | 2,90±0,25 | 1,22 |
| HB-SBRS-NF-22 | 22,0/6,0 | 22 | 6 | 2,50±0,20 | 0,60±0,15 | 3,10±0,30 | 1,22 |
| HB-SBRS-NF-28 | 28,0/6,0 | 28 | 6 | 2,70±0,20 | 0,60±0,15 | 3,40±0,30 | 1,22 |
| HB-SBRS-NF-33 | 33,0/8,0 | 33 | 8 | 2,80±0,30 | 0,60±0,15 | 3,60±0,30 | 1,22 |
| HB-SBRS-NF-38,1 | 38,1/12,0 | 38,1 | 12 | 3,10±0,30 | 0,95±0,20 | 3,90±0,30 | 1,22 |
| HB-SBRS-NF-43,2 | 43,2/12,0 | 43,2 | 12 | 3,50±0,30 | 0,80±0,15 | 4,30±0,35 | 1,22 |
| HB-SBRS-NF-55 | 55,0/16,0 | 55 | 16 | 3,60±0,30 | 0,80±0,15 | 4,40±0,35 | 1,22 |
| HB-SBRS-NF-63 | 65,0/19,1 | 63 | 19 | 3,60±0,30 | 0,80±0,15 | 4,40±0,35 | 1,22 |
| HB-SBRS-NF-75 | 75,0/22,0 | 75 | 22 | 3,60±0,30 | 0,80±0,15 | 4,40±0,35 | 1,22 |
| HB-SBRS-NF-85 | 85,0/25,0 | 85 | 25 | 3,60±0,30 | 0,80±0,15 | 4,40±0,35 | 1,22 |
| HB-SBRS-NF-95 | 95,0/30,0 | 95 | 30 | 3,60±0,30 | 0,80±0,15 | 4,40±0,40 | 1,22 |
| HB-SBRS-NF-105 | 105,0/30,0 | 105 | 30 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1,22 |
| HB-SBRS-NF-120 | 120,0/39,0 | 120 | 39 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1,22 |
| HB-SBRS-NF-130 | 130,0/40,0 | 130 | 40 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1,22 |
| HB-SBRS-NF-140 | 140,0/42,0 | 140 | 42 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1,22 |
| HB-SBRS-NF-160 | 160,0/50,0 | 160 | 50 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1 |
| HB-SBRS-NF-180 | 180,0/60,0 | 180 | 60 | 3,80±0,30 | 0,80±0,15 | 4,60±0,40 | 1 |
| HB-SBRS-NF-200 | 200,0/69,0 | 200 | 69 | 3,80±0,30 | 0,80±0,15 | 3,90±0,40 | 1 |
| HB-SBRS-NF-230 | 230,0/78,0 | 230 | 78 | 4,10±0,30 | 0,80±0,15 | 3,90±0,40 | 1 |
