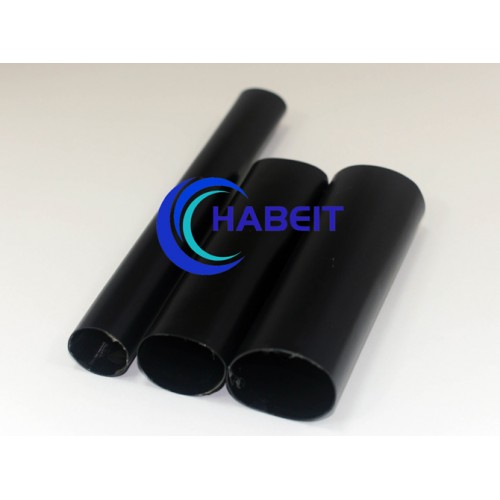

HB-SBRSTV
Adhesive Coated Medium Wall Heat Shrink Tubing, Heat Shrink Tubing and Adhesive Jacket that set the industry standard for cable TV for protecting joints and connectors. Superior weather, moisture and environmental resistance. Heat Indicator Lines
Adhesive lining provides full environmental protection and insulation
Resistant to common liquids and solvents.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 3
Packing: spool and slice
| Technical Data | |||
| Property | Test method | Standard | Typical Performance |
| Tensile strength(MPa) | ASTMD 2671 | ≥ 10,4 | 11,5 |
| Elongation(%) | ASTMD 2671 | ≥ 300 | 450 |
| Tensile strength after aging(MPa) | UL224 158 ℃*168h | ≥ 7,3 | 8,5 |
| Elongation after aging (%) | UL224 158 ℃*168h | ≥ 200 | 350 |
| Dielectric strength(kV/mm) | IEC 60243 | ≥ 15 | 17,5 |
| Volume resistivity( Ω,cm) | IEC 60093 | ≥ 1*1014 | 2,5 *1014 |
| Adhesive | ||
| Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜ 0,2% |
| Softening Point( ℃) | ASTM E 28 | 85 |
| Strength of pearing (PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTM D 1000 | 80N/25mm |
| Size | As Supplied | After Recovery | Standard Package m/pcs | ||||
| mm | Internal Diameter (mm) | Internal Diameter (mm) | Jacket Thickness (mm) | Adhesive Thickness (mm) | Total Wall Thickness (mm) | ||
| HB-SBRSTV-0400(10,2/3,8) | 0400(10,2/3,8) | ≥ 10,2 | ≤ 3,8 | 1,40 ±0,20 | 0,40 ±0,10 | 1,90 ±0,25 | 1,22 |
| HB-SBRSTV-0750(19,0/5,6) | 0750(19,0/5,6) | ≥ 19,0 | ≤ 5,6 | 1,80 ±0,20 | 0,45 ±0,15 | 2,40 ±0,30 | 1,22 |
| HB-SBRSTV-1100(27,9/10,2) | 1100(27,9/10,2) | ≥ 27,9 | ≤ 10,2 | 2,40 ±0,30 | 0,50 ±0,20 | 3,30 ±0,35 | 1,22 |
| HB-SBRSTV-1300(33,0/10,2) | 1300(33,0/10,2) | ≥ 33,0 | ≤ 10,2 | 2,50 ±0,30 | 0,50 ±0,15 | 3,30 ±0,35 | 1,22 |
| HB-SBRSTV-1500(38,1/12,7) | 1500(38,1/12,7) | ≥ 38,1 | ≤ 12,7 | 2,40 ±0,30 | 0,50 ±0,15 | 3,30 ±0,35 | 1,22 |
| HB-SBRSTV-1700(43,2/12,7) | 1700(43,2/12,7) | ≥ 43,2 | ≤ 12,7 | 2,40 ±0,30 | 0,50 ±0,15 | 3,30 ±0,35 | 1,22 |
| HB-SBRSTV-2050(55,0/19,0) | 2050(55,0/19,0) | ≥ 55,0 | ≤ 19,0 | 2,40 ±0,30 | 0,50 ±0,15 | 3,30 ±0,35 | 1,22 |
| HB-SBRSTV-2750(70,0/25,4) | 2750(70,0/25,4) | ≥ 70,0 | ≤ 25,4 | 2,80 ±0,30 | 0,60 ±0,15 | 3,40 ±0,40 | 1,22 |
