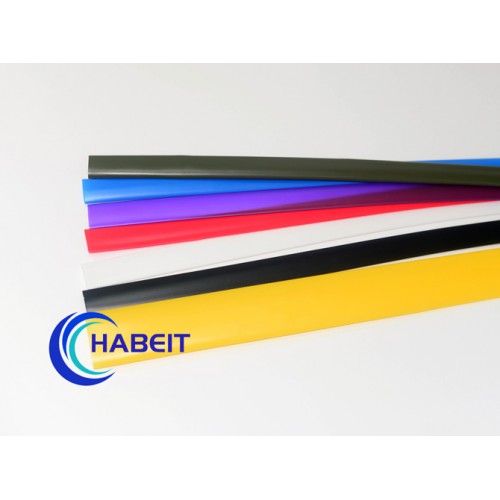

HB-SBRS-(4X)G
Suppressive adhesive heat shrink tubing HB-SBRS- (4X) G. The high shrinkage factor allows you to insulate objects with a large difference in size. Does not spread combustion. It is used in the automotive industry, electrical insulation, aircraft construction, medicine.
Operating temperature: -45 ℃ to 125 ℃
Shrinkage temperature: 125 ℃
Colors: black
Shrinkage ratio: 4
Packing: spool and slice
| Technical Data | |||
| Property | Test method | Standard Performance | Typical Performance |
| Tensile strength(MPa) | ASTM D 2671 | ≥10.4 | 11,5 |
| Elongation(%) | ASTM D 2671 | ≥200 | 450 |
| Tensile strength after aging(MPa) | UL224 158℃*168hr | ≥7.3 | 8,5 |
| Elongation after aging (%) | UL224 158℃*168hr | ≥100 | 350 |
| Flammability | ASTM D 2671 B | Self-extinguish within 30s | Self-extinguish within 30s |
| Dielectric strength(kV/mm) | IEC 60243 | ≥15 | 17,5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1*1014 | 2.5*1014 |
| Adhesive | ||
| Property | Test method | Standard Performance |
| Water Absorption | ASTM D 570 | ＜0.2% |
| Softening Point(℃) | ASTM E8 | 95 |
| Strength of pearing (PE) | ASTMD 1000 | 120N/25mm |
| Strength of pearing (AL) | ASTMD 1000 | 80N/25mm |
| Size | Expanded | After Recovery | Standard Package | ||||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool | |
| HB-SBRS-(4X)G 4 | 5/32 | 4 | 4 | 1 | 1,00±0,15 | 0,40±0,15 | 200 |
| HB-SBRS-(4X)G 6 | 1/4 | 6 | 6 | 1,5 | 1,10±0,15 | 0,40±0,15 | 100 |
| HB-SBRS-(4X)G 8 | 5/16 | 8 | 8 | 2 | 1,50±0,15 | 0,50±0,15 | 50 |
| HB-SBRS-(4X)G 12 | 1/2 | 12 | 12 | 3 | 1,70±0,15 | 0,50±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 16 | 5/8 | 16 | 16 | 4 | 2,00±0,15 | 0,60±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 20 | 25/32 | 20 | 20 | 5 | 2,30±0,25 | 0,60±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 24 | 1 | 24 | 24 | 6 | 2,60±0,25 | 0,60±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 32 | 1-1/4 | 32 | 32 | 8 | 3,00±0,30 | 0,70±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 40 | 1-1/2 | 40 | 40 | 10 | 3,00±0,30 | 0,70±0,15 | 1,22 OR 25M/Roll |
| HB-SBRS-(4X)G 52 | 2 | 52 | 52 | 13 | 3,30±0,30 | 0,70±0,15 | 1,22 OR 25M/Roll |
